AirWard Van's RV-10 - Rear Fuselage Access Kit for BOTH SIDES
AirWard Van's RV-10 - Rear Fuselage Access Kit for BOTH SIDES
AirWard Van's RV-10 - Rear Fuselage Access Kit for BOTH SIDES

AirWard Van's RV-10 - Rear Fuselage Access Kit for BOTH SIDES

  • Save $30

AirWard has developed a Kit with TWO Access Panels, one on each side of the Fuselage, to allow access to the rear Fuselage area from behind the Baggage Compartment Bulkhead to the Empennage (Tail).

The Access Reinforcing and Cover Plates have "pre-drilled starter holes" for ease of installation.

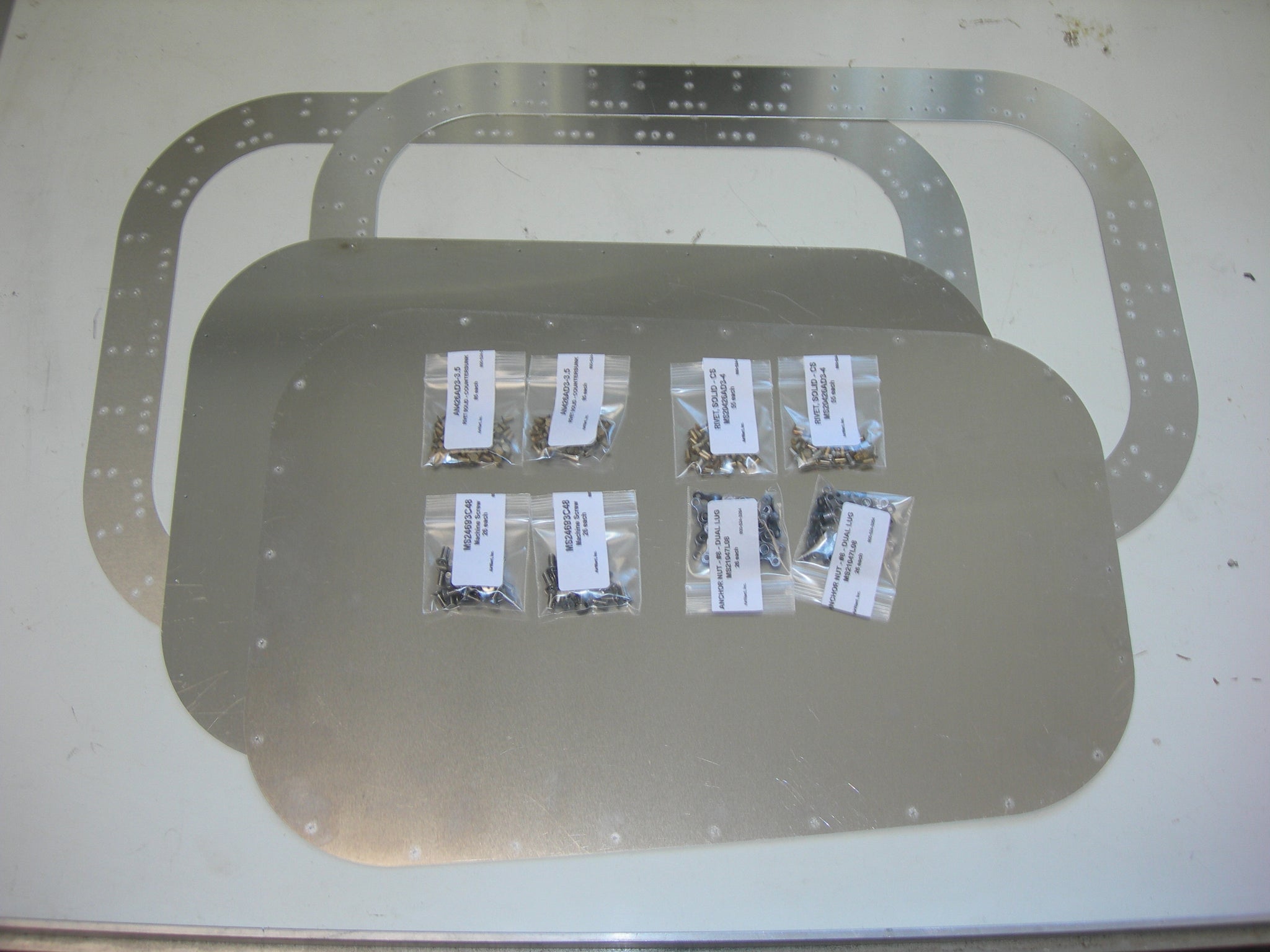

The Kit contains the following items for BOTH Sides the Fuselage:

2 each - Reinforcing Plates - 19" x 13" Oval - .032" Aluminum;

2 each - Cover Plates - 17" x 11" Oval - .032" Aluminum;

52 each - MS21047L08 - #8 Two Lug Anchor Nuts;

52 each - MS24693C48 - #8 - Countersunk Machine Screws - Stainless;

104 each - AN425AD3-4 - Countersunk Solid Rivets - 9/32" OL - .094" ID;

196 each - AN425AD3-3.5 - Countersunk Solid Rivets - 7/32" OL - .094" ID;

1 each - Sealant with Wax Paper

Copy of AirWard's Installation Instructions.

SINGLE SIDE Access Covers are also available.
