AirWard - Piper PA28/32 Nose Strut Repair Kit

AirWard - Piper PA28/32 Nose Strut Repair Kit

  • $695.00


Kit used on all Piper PA28/32 - EXCEPT Retractable Aircraft;

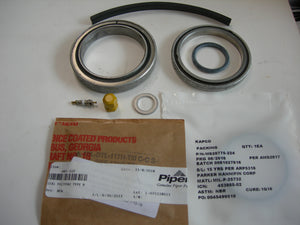

The following AirWard Kit covers the following:

1 - 452-333 Top Sealed Bearing;

1 - 452-332 Bottom Sealed Bearing;

1 - 462-050 (MS28775-224) O-ring;

1 - MS28775-211 (AN6227-16) O-ring;

1 - MS28775-222 (AN6227-27) O-ring;

1 - 494-025 (AN6246-27) Washer, Backup;

1 - 484-770 (4222) Quad Ring;

1 - 187-625 (10V70) Wiper Strip;

1 - 484-733 (15207-000) Ring, "O" Piston Tube;

1 - 462-024 (AN901-5A) Service Valve Washer;

1 - 455-124 (AN809-1) Service Valve Core;

1 - 454-053 (AN813-1B) Service Valve High Pressure Cap;

1 Copy of AirWard's Piper Nose Strut Service Instruction.
