AirWard Piper MSB1006 Fuel Tank Inspection Kit (PA32-300)(1979 & UP) & PA32R-300)(1976 & UP)(Lance)

  • $395.00
  • Save $134

Very Important. When ordering your Kit be sure to include your Aircraft Model, Serial Number and/or "N" Number - in the "NOTES" Section.  This will ensure you receive the proper Kit.

This Kit does NOT apply to PA32-300 (S/N 32-40000 to 78-40222 - see PA32-260/300 (Early).

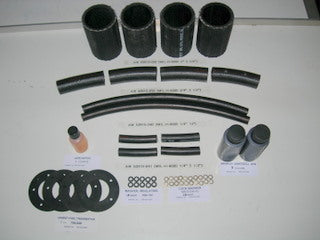

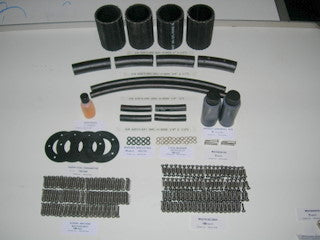

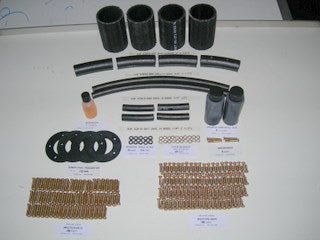

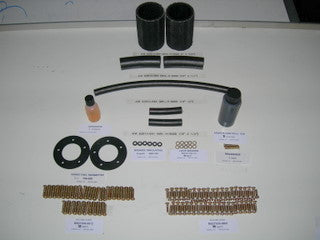

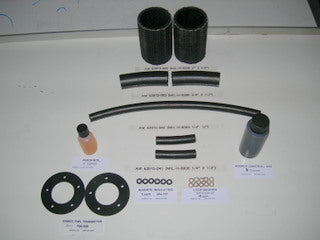

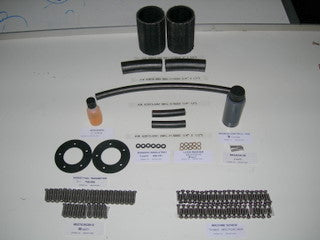

AirWard offers this series of inexpensive Kits to comply with the Piper Mandatory SB1006. The kits save you over 40% on the price of sourcing everything and are very convenient. Each Kit contains just the right amount of materials and are complete right down to the screws, gaskets and instructions. Everything you need to deal with this service - all in one box.

  1. Inspect for corrosion and treat the spar areas behind the fuel tanks
  2. Replace fuel/vent lines that are now very old and brittle.

Most Pipers have never had their tanks off. Unchecked spar corrosion and deteriorating fuel lines present significant safety and longevity problems. Let alone loss of investment.

For those of you that do NOT have access to a Pneumatic Screw Removal Tool Kit. We have one available from Aircraft Tool Supply. This Kit is very helpful for those stubborn tank screws. The last thing you want to do is strip the head on one of these screws as this will make and compressed air to use this Kit.

Piper Mandatory SB1006 should be complied with every 7 years.

NO FAA Form 8130-3 will be included.

If any HOSES require FAA Form 8130-3 - call/email for quote.

All MSB1006 Kits are shipped Ground (UPS/FedEx) due to Ardrox (Dinitrol) AV8 Corrosion Preventative being flammable (HAZMAT).

FREE SHIPPING applies to Continental U.S. only.

You might need the following parts and tools:

2 - AW-38230-002 Kit - Transmitter, Visual - 25 Gallon;

2 - CCA-1550 Fuel Drain Valve (Bayonet Style);

2 - F391-187 Fuel Drain Valve (Flush Style);

Note: if your Fuel Cap seems a bit loose when tightened - you may need to purchase the 1/8" Thick Gasket (RG-325),

2- 462-056 Gasket Fuel Cap 1/16" Thick or

2 - RG-325 Gasket Fuel Cap 1/8" Thick;

36625-002 Fuel Vent Drain Weld - Left Wing;

36625-003 Fuel Vent Drain Weld - Right Wing;

AT540A-KIT Screw/Bolt Removal Kit.
