AirWard's Parking Brake Kit - WITHOUT Valve & Cable
VERY IMPORTANT: The Kits were developed for the Van's RV-10 and are adaptable to any Experimental Aircraft with Left and Right Braking. The Adapter is designed to accommodate the MATCO PVPV-D Parking Brake Valve. The only differances between the Experimental Aircraft are the Type and Size of the Brake Lines between the output of the Master Cylinders and the top of the Main Gear. To ensure we ship the proper Fittings for the Parking Brake Valve (they require 1/8" NPT Fittings) - indicate what material you plan to use - Aluminum or Plastic (Nylon); and the outside diameter of the line - (usually 1/4" OD). Also, indicate if you need Straight, 45 or 90 Degree Fittings and how many of each. When ordering -Note this information in the NOTES Section of the Order Form.
You will want to stop and hold your aircraft for any of the following reasons:
Fuel pit on a incline;
In front of your hangar;
Just a general Safety item.

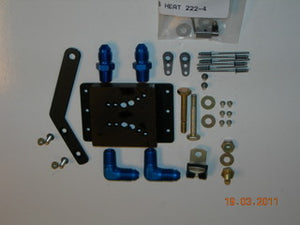

The Kit can be adapted to any Experimental Aircraft. The Kit includes:
- Machined Adapter and Arm;
- Hydraulic fittings (4) for Parking Brake Valve;
- All bolts, nuts, washers, nutplates, screws, rivets and clamps included.
